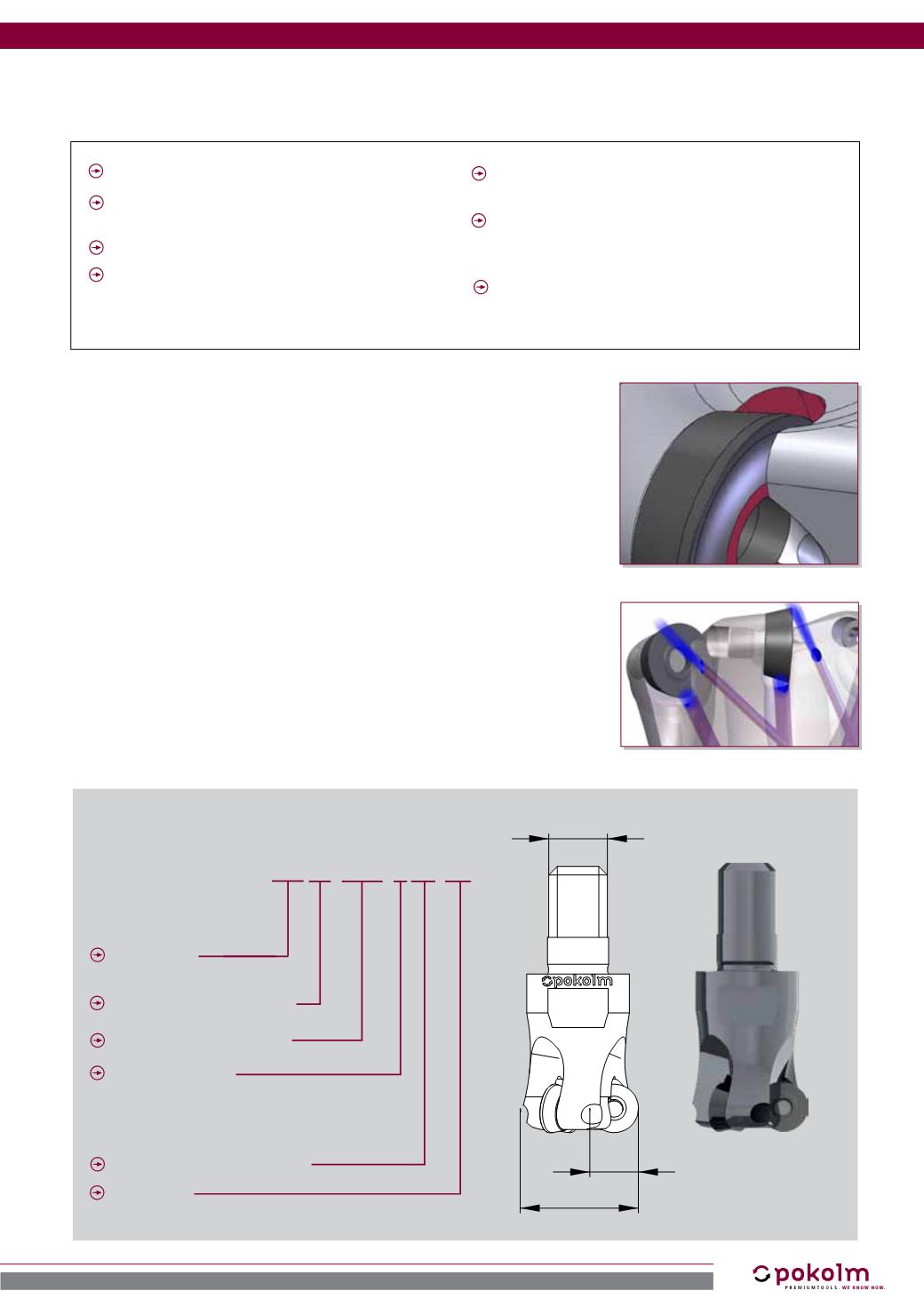

d
2
d
1
d
100% use of the total insert periphery
Multiple increase in tool life*
Can be used in steel, cast iron, rust-free materials,
stainless steel and high-temperature alloys
Minimised set-up times since no manual
re-locating of the inserts is necessary
Reduced chip compression leads to lower power
consumption, which also protects your machine
spindle
Insert seat:
Order number key:
Example:
DR10-025-E12-03
Tool type
Tool type
diam. mm
[d]
Nominal diameter
mm
[d
1
]
Type of connection
Connection size
diam. mm [d
2
]
D - DuoPlug
®
E - Threaded shank end mill body
A - Shell-type milling cutter body
No. of teeth
The large transition radius of the seats in the
SPINWORX
®
tools excludes an increa-
sed notching effect from the insert. A further advantage is that the base of the tooth
cannot break off due to overload. The embedding design is such that holes of the
inserts are not covered and soiling can escape.
Targeted - the double coolant supply:
The exactly aligned coolant supply constitutes a further design innovation. One bore
is usually used to clean the chip chamber, the second guarantees the permanent
direct cooling of the insert even under maximum thermal loads. At the same time,
these are important pre-requisites for the unparalleled tool lives – a feature unique
to
SPINWORX
®
.
DR - SPINWORX
®
Chip volume is much higher without inter-
ruption in the production process*
Ideal for roughing and residual material machining
during face milling, slot, peripheral and pocket
milling
* depending on milling conditions
3
